Signiant Jet Overview

Signiant Jet is a SaaS solution designed to act as an engine for automated system-to-system file transport between geographically distributed locations. Although Jet is intended primarily to be used for regularly-occurring transfers, administrators can also use it for one-time transfers between storage locations.

Jet can transfer content within the same company or between companies using on-premises file storage from any vendor or cloud object storage from Amazon AWS.

Jet can be configured to use on-premises storage by installing Signiant SDCX Server software at a source or destination endpoint. Jet transfers are accelerated between endpoints through technology included in the SDCX Server, and by interfacing with Signiant Cloud Services to ensure consistent transfers.

Amazon AWS storage can be connected to Jet endpoints using Role ARN or Access Key authentication. Transfers to or from cloud storage are coordinated by cloud-based SDCX Servers that are hosted and maintained by Signiant.

Jet Architecture with On-premises Storage

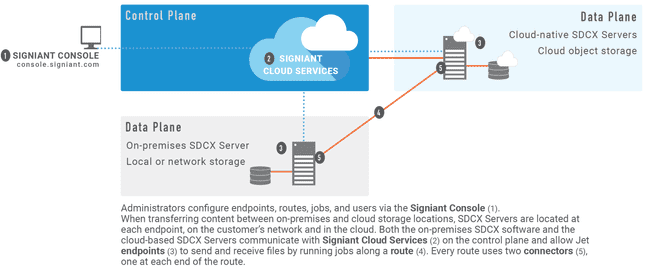

Jet Architecture with On-premises and Cloud Storage

1. Signiant Console (console.signiant.com)
The Signiant Console is a cloud-based application that allows administrators to configure endpoints, routes, storage, jobs, and users. Administrators can log in and manage Jet from their own network, or the public Internet via a secure and encrypted connection.

2. Signiant Cloud Services
Jet interfaces with Signiant Cloud Services to provide web and database servers, account management, and reporting services. Cloud services report server and transfer status, and contribute the functions necessary to transfer files between locations.

3. Endpoint
An endpoint is a location that serves as a file transfer source or destination.

• Signiant SDCX Server software must be installed on a server at a source or destination endpoint to provide accelerated transport functionality and secure communication with Signiant Cloud Services.
• The source or destination endpoint must connect to local disk or network storage.
• For transfers to or from cloud storage, either the source or destination endpoint is connected to Amazon AWS storage.
• The endpoint and file path to the storage location define a storage profile that can be used for multiple Jet jobs.

To learn how to create endpoints and assign storage to endpoints, see Configuring Endpoints.

4. Route
A route connects two endpoints. Once a route is built, jobs can be added to the route. A job specifies the files to transfer and when to transfer them. Each route can support an unlimited number of jobs.

Every route requires the use of two connector tokens, one at each end of the route.

To learn how to create routes and test endpoint connections along a route, see Building Routes.

To learn how to create jobs, see Working With Jobs.

Deploying Jet

Jet deployment and configuration is performed through the Signiant Console, which is accessible through any web browser.

For supported operating systems and hardware requirements, see Jet System Requirements.

For network and local port requirements, plus instructions for deploying an SDCX Server, see the Jet Deployment Guide.

Integrating Jet with Media Shuttle

Jet is designed to work with Media Shuttle by allowing automated file movement between Signiant SDCX Servers used as either Media Shuttle storage servers or dedicated Jet endpoints.

For more information, see Combining Jet and Media Shuttle in Workflows.
